Comparing Mill vs Gradle: Programmable Builds

Firstly, the Gradle "config as code" may be using Kotlin, doesn’t actually look like Kotlin code you are writing day-to-day. In particular, there’s a non-trivial "build plugin API" you need to learn to write this:

Furthermore, the stringly-typed values add to the potential for error:

In fact, there is even a bug in the above Gradle config that will cause the build to be non-deterministically slower sometimes, but not other times. Can you spot it? ChatGPT couldn’t! (Click the footnote to see the answer ^[1])

The difficulty of catching these issues e.g. during code review illustrates how difficult it is to write "correct" Gradle config: if even the simplest hello-world customization results in impossible-to-find heisenbugs bugs slowing things down, how many bugs will there be in any more-complex real-world customization or plugin? It’s no wonder then than real-world builds using Gradle or other tools often end up being inexplicably slow and flaky.

The end result is that although you may know Kotlin as a compiled language, you will likely be unfamiliar with Gradle’s flavor of Kotlin. Counting the lines of code in a folder is something any Kotlin programmer can do with their eyes closed, but properly wiring it into a Gradle build can be a tricky and error-prone affair. Lastly, although the JVM platform is famous for having excellent IDE support, when working with Gradle your IDE will likely not be as useful as you would like. We’ll dive into what that means in the next section.

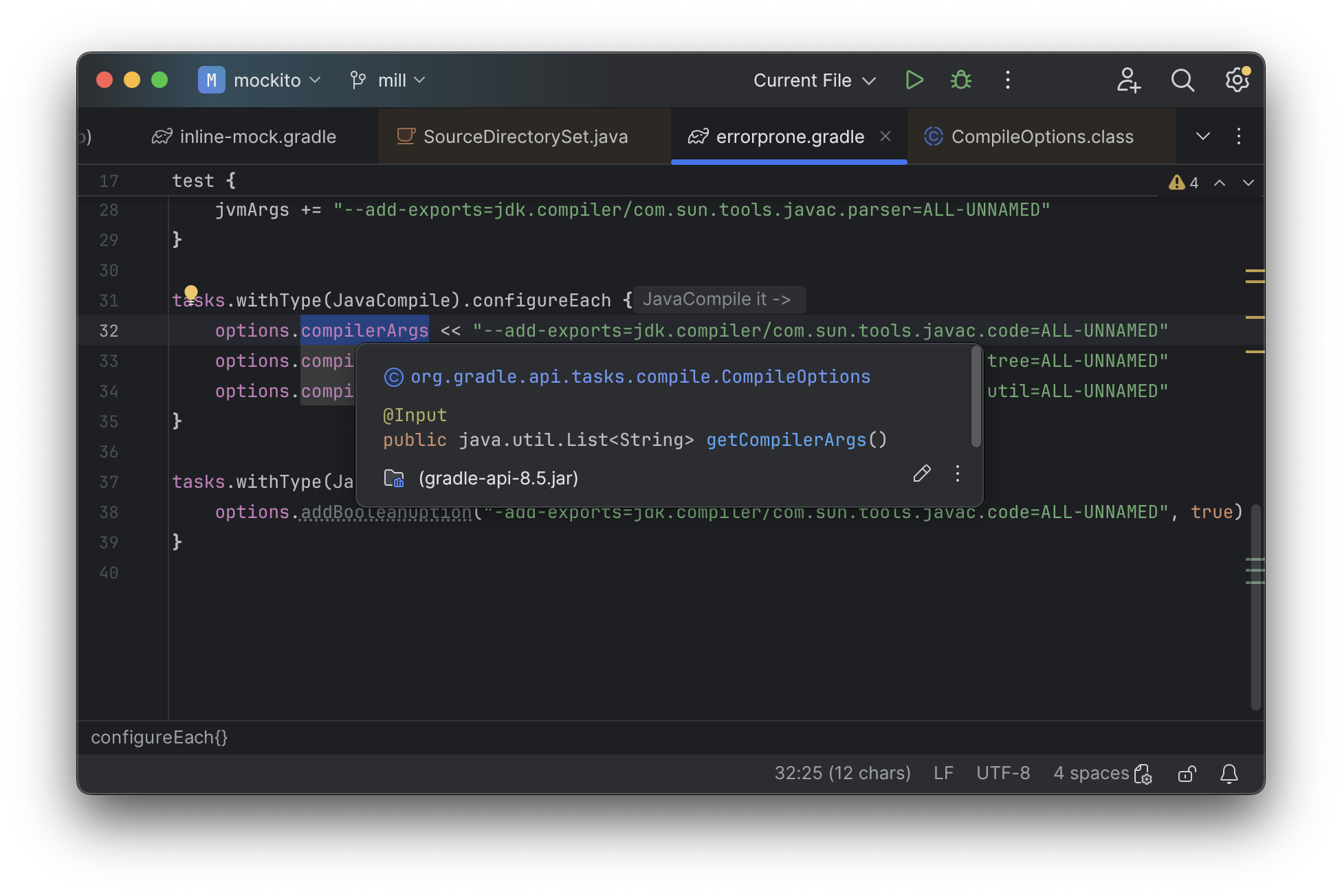

While JVM application codebases universally have excellent IDE support, build tools are usually not nearly as well-supported. For example, consider the snippet below where we are using Gradle to configure the javac compiler options. In the example below, we can see that IntelliJ is able to identify that compileArgs exists and has the type List<String>:

But if you try to jump to definition or find out anything else about it you hit a wall. The IDE is able to bring you to the getter and setter, but it isn’t able to tell you where the value is coming from, how it is computed, or where it is used:

Often working with build configurations feels like constantly hitting a wall: if you don’t have options.compilerArgs memorized in your head, there is literally nothing you can do in your IDE to figure out what it is or what it is used for. That leaves you Googling for answers or digging through stackoverflow, which can be a frustrating experience. Even modern AI assistants like ChatGPT or Gemini often hallucinate and get things wrong.

Notably, this is in stark contrast to the experience working with typical Java/Scala/Kotlin code in an IDE like IntelliJ, where your IDE is amazingly helpful at tracing through method calls and class hierarchies. Even without documentation, stackoverflow, or AI coding assistants, in typical JVM projects you are easily able to trace through the code and figure out exactly how it works and what it’s doing.

Although this example is using Gradle’s un-typed Groovy syntax, the experience using Gradle’s typed Kotlin syntax is largely the same. The problem isn’t unique to Gradle, isn’t unique to Groovy or Kotlin, and isn’t unique to IntelliJ. The problem is the style of code that most build tools require they be configured with.

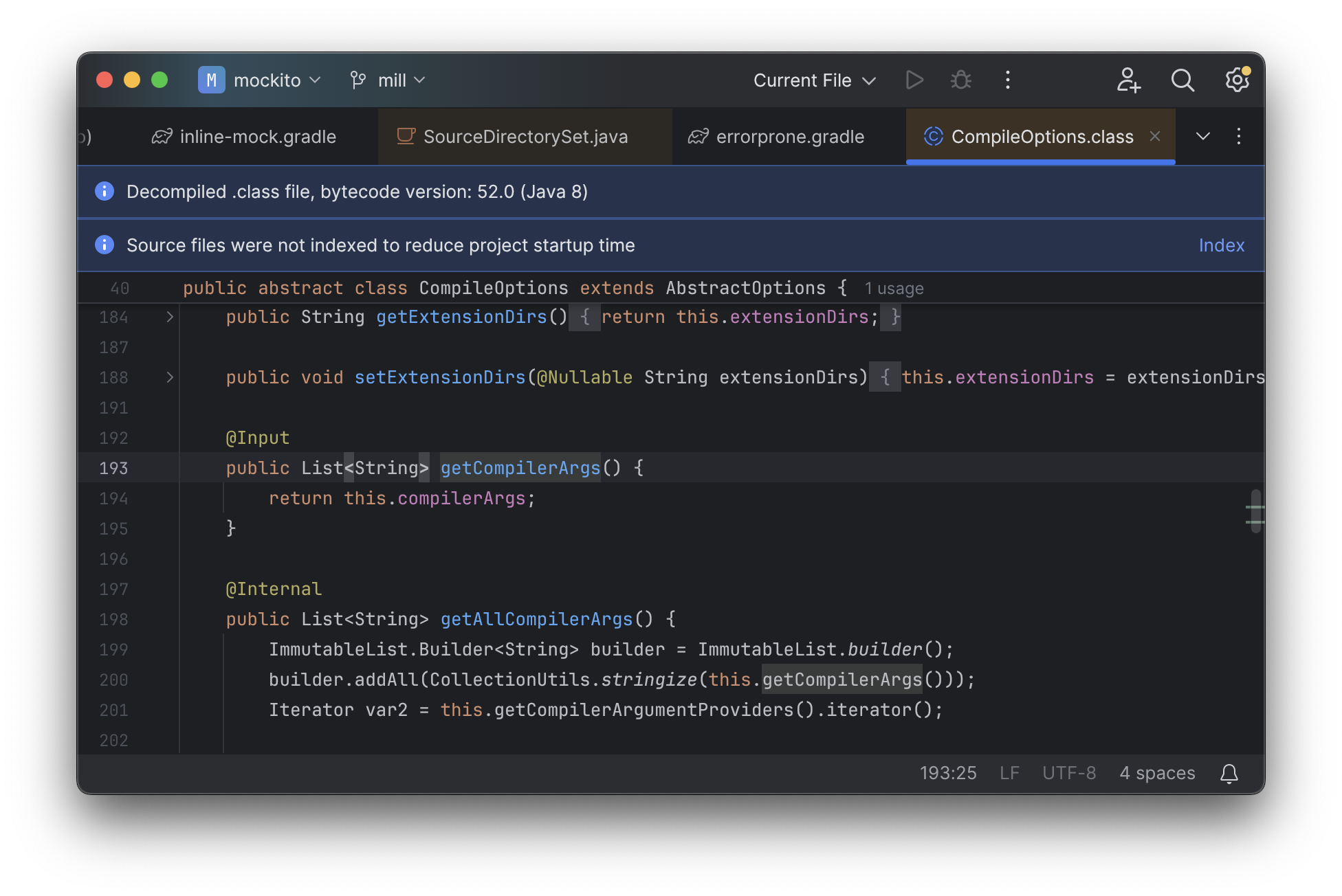

The fundamental problem with build tools like Gradle is that the entire configuration system is based around global mutable variables. We can see a hint of that in the IDE screenshot above, where jumping to compilerArgs brings us to a getter and setter:

The Groovy or Kotlin code you write does not actually perform the build, but instead is just setting up some global mutable data structure that is used to configure the real build engine that runs later. IDEs are generally not good at understanding logic around global mutable variables, and just because the global mutable variable is wrapped in a getter and setter does not make it any less global or any less mutable!

This issue with global mutable variables is at the core of why IDEs have trouble with build tools. It doesn’t matter what IDE you are using, and it doesn’t matter what language the build tool is configured with. If the build tool is build on top of a big list of global mutable variables - as is the case for Gradle and most other programmable build tools - then inevitably the user is going to have a poor IDE experience trying to navigate it.

Consider the following minimal Mill build with a Java module foo. It contains no custom configuration, and so inherits all the defaults from mill.javalib.JavaModule: default source folder layout, default assembly configuration, default compiler flags, and so on. This convention over configuration is a philosophy that Mill inherited from Maven and other JVM build tools:

Mill "modules" are just vanilla JVM objects inheriting from a *Module class, and Mill "tasks" are just vanilla JVM methods that return a Task<T> or Task[T] value. So if we want to add a custom task to this example, perhaps "counting the lines of code and writing it to a resource file" as we did above with Gradle, this is as simple as defining a method. An implementation of this is shown below

Some notes on this:

Once we define a new task, we can immediately begin using it in our build. lineCount is not used by any existing JavaModule tasks, but we can still show its value via the Mill command line to evaluate it, or inspect its metadata:

Note that as lineCount is a Task, we get automatic caching, invalidation, and parallelization: these are things that every Task gets for free, without the developer needing to do anything. And although we wrote the lineCount logic in the main build.mill file for this example, if it grows complex enough to get messy it is easy to move it to your own custom plugins

We have defined our custom lineCount task, but we still need to write it to a JVM resource file so the value can be used at runtime. In Mill everything is a Task and every task is a method, and so JVM resources defined by def resources are no different. And like any other method, the way we customize it is by overrideing it, as shown below:

Some notes:

This results in a small addition to the Mill build graph as shown below, with our two custom tasks def lintCount and def resources spliced in among existing Mill tasks:

Now if we call mill foo.run, it will automatically pick up the new resources including the generated line-count.txt file and make it available to the application code to use e.g. to print it out at runtime:

One thing worth highlighting is this Task.dest folder we are writing our line-count.txt file to. Task.dest is a path in the out/ folder unique to each Task, so it can write files there without worrying about colliding with files written by other tasks. This makes the ownership of files in the out/ folder clear, making it much easier for humans to understand where files came from and Mill itself to make use of that information (e.g. for automatic caching or invalidation).

Nobody actually wants to count the lines of code in their program and write it in a resource file, but this example demonstrates how easy it is to extend your Mill module with custom logic in its own little pipeline: you just define method defs calling other methods, override methods and call super as necessary. These are concepts that any Java developer has been using daily for decades, and Mill lets you re-use those concepts to configure and customize your build tool without having to learn a whole new set of build-tool-specific APIs.

It’s worth contrasting the Mill config above with e.g. the equivalent Gradle configuration we discussed earlier. Where Gradle’s programmatic configuration is built on top of global mutable variables, Mill is instead built on classes, extends, method defs and calls, and overrides. These behave exactly as you would expect any object-oriented program to work, so you already know how Mill behaves even if you’ve never touched a Mill build before. And the fact that Mill build config is so much easier to write means that you’re much less likely to have bugs causing slowness or flakiness, resulting in the improved performance (discussed above) and not needing to regularly run clean as you often have to do with other build tools.

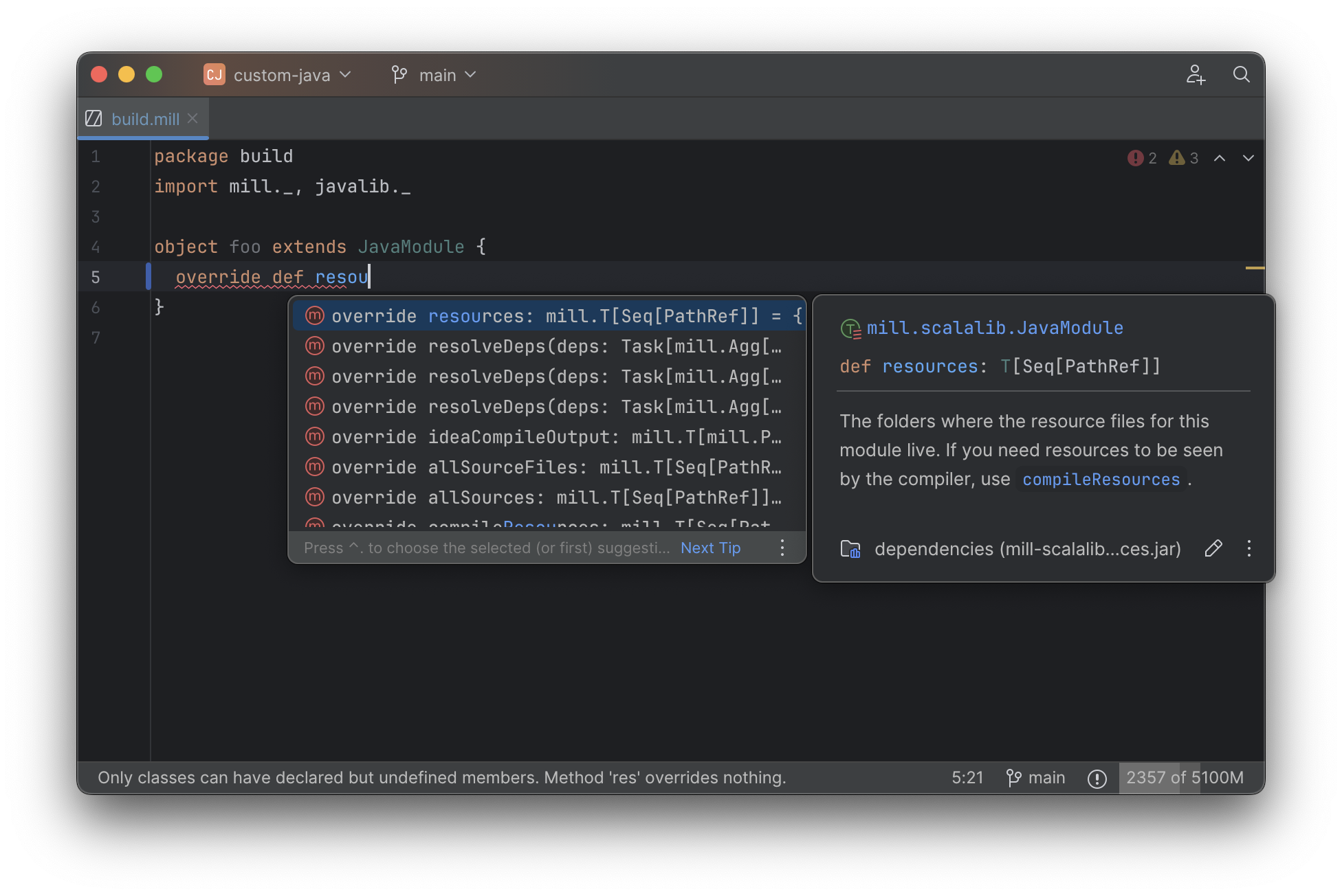

One area that Mill does better than Gradle is in providing a seamless IDE experience. Working with Mill builds in IntelliJ or VSCode, you get the full power of your IDE to autocomplete, peek at docs, browse signatures, and otherwise navigate around your build system. For example, when writing our override def resources above, we get IDE assistance in auto-completing the def along with pop-up documentation about what each method does so we can decide which one we want to override:

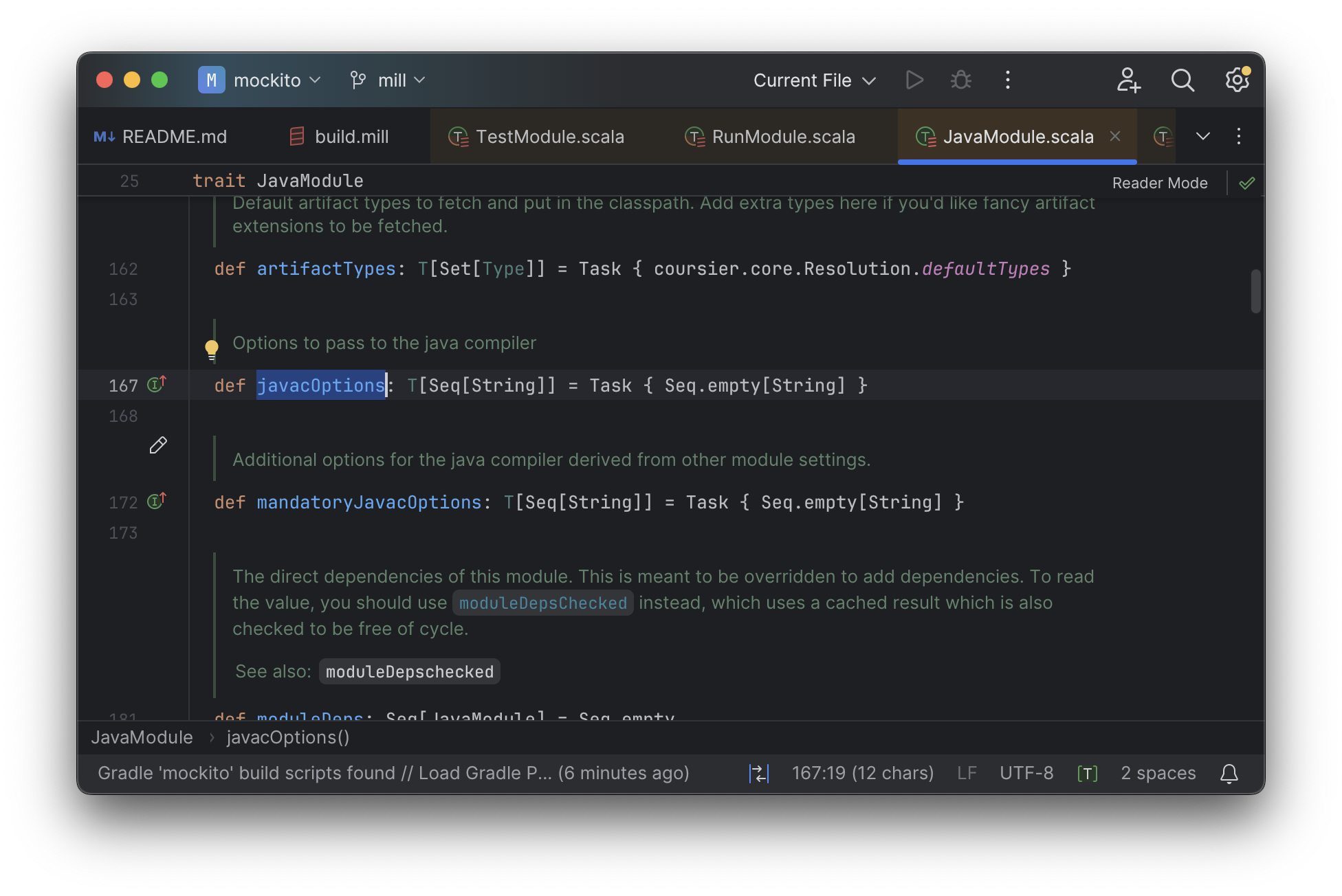

The big difference with Mill is that rather than building on global mutable variables, Mill is built on top of classes and methods like any other JVM codebase. While IDEs struggle with global variables, they are very good at navigating classes and methods! For example, the equivalent to the Gradle compilerArgs setting we looked at earlier is Mill’s def javacOptions method. But rather than being a global mutable variable that gets set, def javacOptions is a method override, something that IntelliJ is extremely capable and navigating, e.g. it can show you where the method you are overriding was defined, where

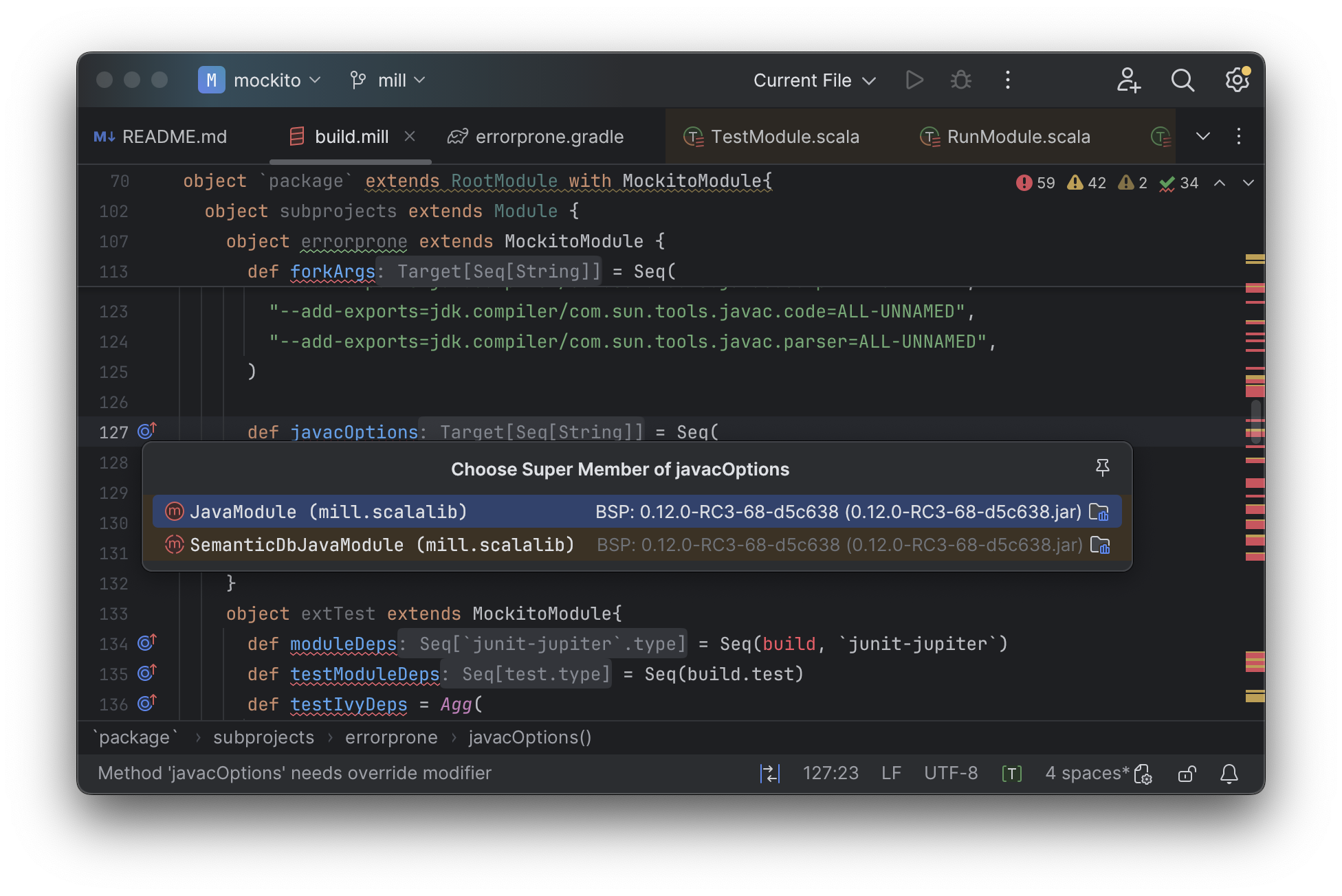

IntelliJ can jump to any of the overridden defs quickly and precisely, so you can see what value was there before we overrode it:

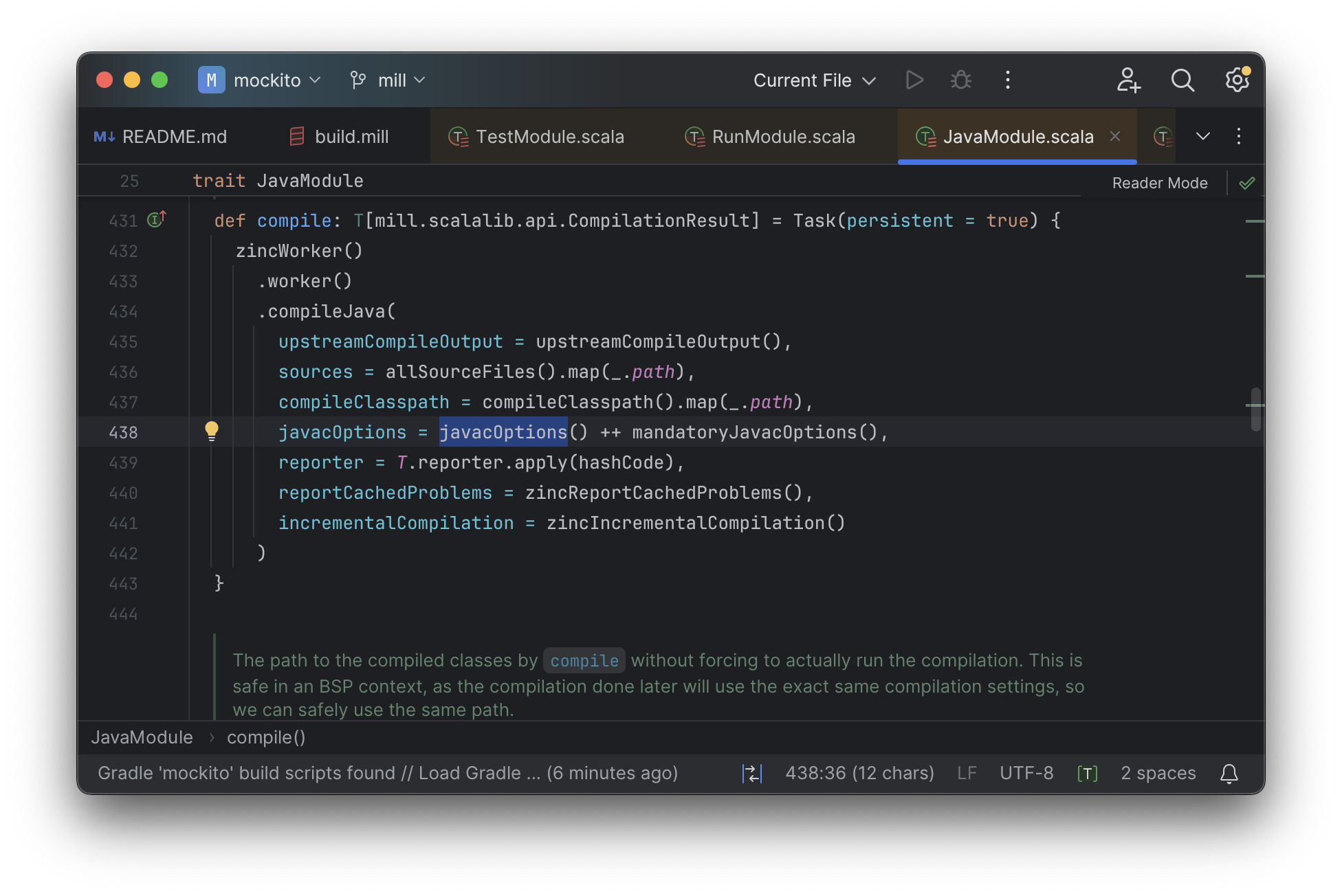

And because tasks in Mill are just normal methods, IntelliJ is able to find usages, showing you where the task is used. Below, we can see the method call in the def compile task, which uses javacOptions() along with a number of other tasks:

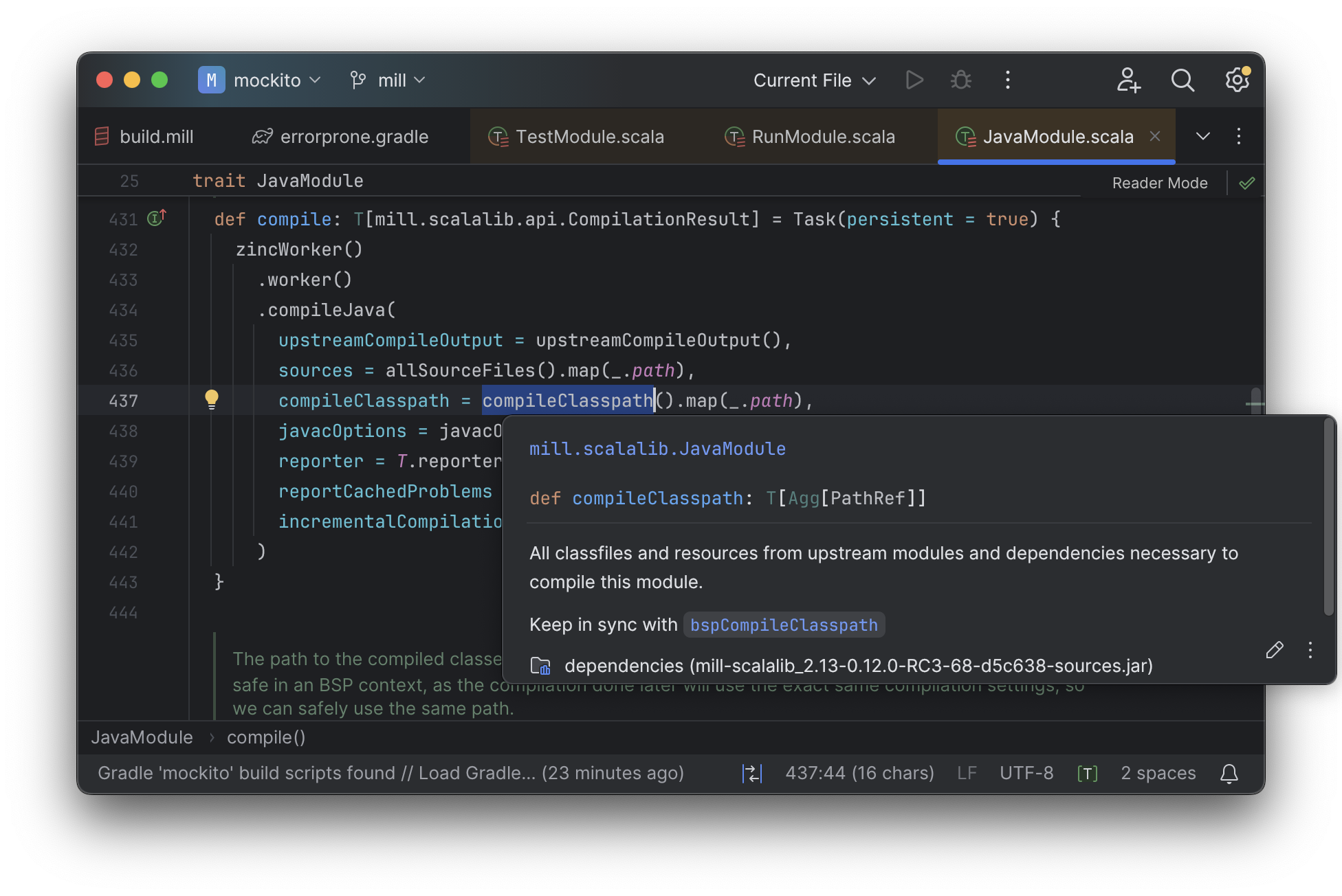

From there, if you are curious about any of the other tasks used alongside javacOptions, it’s easy for you to pull up their documentation, jump to their definition, or find their usages. For example we can pull up the docs of compileClasspath() below, jump to its implementation, and continue interactively exploring your build logic from there:

Unlike most other build tools, Mill build pipelines can be explored interactively in your IDE. If you do not know what something does, it’s documentation, definition, or usages is always one click away in IntelliJ or VSCode. This isn’t a new experience for Java developers, as it is what you experience every day working in your application code! But Mill brings that same polished experience to your build system - traditionally something that has been opaque and hard to understand - and does so in a way that no other build tool does. And this is possible because Mill builds avoid the global mutable variables common in other build tools, in favor of configuring your build via classes and methods that are familiar to both users and to IDEs.

Mill’s programmable configurable has a lot of improvements over programmable build tools like Gradle, but it begs the question: why can’t other build tools improve their ease of extensibility or IDE support as well? It turns out that other tools have been working on improving these things - for decades - but Mill does have some secret sauce that makes providing this experience in Mill much easier than providing it in any other build tool.

Mill has the same requirement of defining templated graph-computations, but rather than inventing a bespoke programming, configuration and plugin model to do so, Mill builds upon what everyone already knows:

Thus, when you see a Mill build configured as such, with an object extending a class:

This is not some special syntax, but is literally defining an object named foo inheriting from the class JavaModule. Like any other inheritance, this picks up the methods and method call graph of JavaModule (slightly simplified below)

And when you add additional tasks by defining methods using def, or override tasks and call super:

You as a Java programmer already know how these changes affect the build graph, by splicing in the new method foo.lineCount, replacing foo.resources with a new method body, and calling foo.super.resources:

If we want to re-use your build pipeline customizations, it as simple as turning the singleton object foo into a class MyJavaModule (called trait MyJavaModule in Mill’s Scala syntax), and it can be inherited by object foo and object bar to share the configuration:

If we want to further customize either of those modules, we can override one or more of the inherited methods, either directly on object foo or object bar, or on a subclass extending MyJavaModule that we can then re-use. And if we want to publish our customizations for others to use in their own projects, we can publish MyJavaModule to Maven Central for others to import into their build.

Mill’s usage of methods, classes, and overrides is also what powers the IDE support discussed earlier on this page. IDEs like IntelliJ or VSCode are uniquely adept at working with object-oriented JVM codebases full of methods and classes, and so they can help you navigate and understand your Mill build pipelines just as easily as any application codebase. And the simplicity of this extension model is what allows Mill developers to avoid making mistakes aroun caching or parallelism when setting up their builds or publishing plugins, which ultimately is what gives Mill builds great performance without ever needing to clean.
